HDPE FTP Network Ethernet Lan Cable Cat5e 24AWG For Server Cabinet
| Payment Terms: | T/T,L/C,WU |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1. ftp cat5e lan cable 4pr 24awg
2.Outer jacket: PVC,LSZH,CMR ,CMP are available.
3. Test :Pass fluck test and with 25 years quality

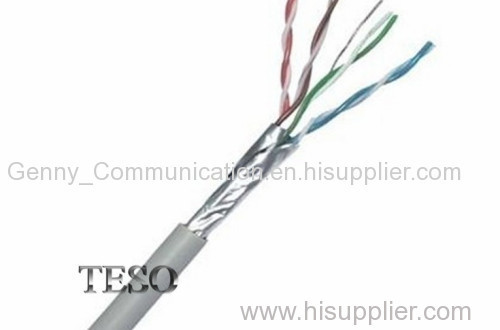

HDPE FTP Network Ethernet Lan Cable Cat5e 24AWG For Server Cabinet
Quick Detail:
1. ftp cat5e lan cable 4pr 24awg
2. Conductor: 0.51mm Bare copper , soft annealed bare copper.
3.Insulation: America Dow's HDPE
4.Outer jacket: PVC,LSZH,CMR ,CMP are available.
5.Any color is optional .
6. Test :Pass fluke test and with 25 years quality warranty.
Application
Structured Cable for Campus, Riser & Horizontal | |
Installation | |
Compatible with all Known Connection systems | |
according to EN50173 | |
Approved by BASEC 067/001/010 |
Standards
ISO/IEC 11801 – 2nd Edition |
EN 50173; EN 50288-2-1; |
ANSI/TIA/EIA-568-B.2-2001 |
Construction
Conductor | Bare Cu Wire | Outside Diameter of Conductor | 0.51 mm | ||
Insulator Material | PE | Outside Diameter of Insulation | 1.03 mm | ||
Number of Twisted Pairs | 4 | Outside Diameter of Sheath | 6.10 mm | ||
Screen Material (Laminated Foil Tape) | Al/PE | Weight PVC (OHLS) | 36.9(38.8) kg/km | ||
Tinned Cu Drain Wire | 0.4mm TinCu | Sheath Colour PVC/0HLS | Grey/Purple | ||
Binder Tape | PET | Sheath Printing | Batch No. & | ||
Sheath Material | PVC or LS0H | Metre marking | |||
Performance Characteristics
Frequency | Attenuation | NEXT | PS-NEXT | RL | ELFEXT | PS-ELFEXT | Delay | |||
MHz | dB/100m | dB | dB | dB | dB | dB/100m | ns | |||
1 | 2 | 65.3 | 62.3 | 20 | 64 | 61 | 570 | |||
4 | 4.1 | 56.3 | 53.3 | 23 | 52 | 49 | 552 | |||
8 | 5.8 | 51.8 | 48.8 | 24.5 | 45.9 | 42.9 | 546.73 | |||
10 | 6.5 | 50.3 | 47.3 | 25 | 44 | 41 | 545.38 | |||
16 | 8.2 | 47.2 | 44.4 | 25 | 39.9 | 36.9 | 543 | |||
20 | 9.3 | 45.8 | 42.8 | 25 | 38 | 35 | 542.05 | |||
25 | 10.4 | 44.3 | 41.3 | 24.3 | 35.8 | 33 | 541.2 | |||
31.25 | 11.7 | 42.9 | 39.9 | 23.6 | 34.1 | 31.1 | 540.44 | |||
62.5 | 17 | 38.4 | 35.4 | 21.5 | 28.1 | 25.1 | 538.55 | |||
100 | 22 | 35.3 | 32.3 | 20.1 | 24 | 21 | 537.6 | |||
Electrical Characteristics
Eland Part Number | Impedance | Max Conductor Resistance | Maximum Resistance Unbalance |
ohms | ohms/Km | % max | |
TESO-LN-Fcat5e | 100±15 | 93.8 | 2.5 |
